Productdetails
Plaats van herkomst: CHINA
Merknaam: ENWEI
Certificering: CE
Modelnummer: Enwei 2450
Document: Model 2450 solar trailer.pdf
Betaling & het Verschepen Termijnen
Min. bestelaantal: 1
Verpakking Details: Eén 20GP kan 4 eenheden laden, één 40HQ kan 8 eenheden laden
Levertijd: 20 dagen
Betalingscondities: T/t
Levering vermogen: 1000 eenheden per jaar
Zonnepanelen: |
2*450W, handmatig opvouwbaar |
Gelbatterijen: |
4*200AH, DV 12V |
Controleur: |
60A MPPT |
Omvormer: |
1 kW |
Mast: |
6m, 20ft, handmatig tillen |
Banden: |
R14 |
Kleur: |
Wit, rood, zwart |
Gewicht: |
ongeveer 900 kg |
Zonnepanelen: |
2*450W, handmatig opvouwbaar |
Gelbatterijen: |
4*200AH, DV 12V |
Controleur: |
60A MPPT |
Omvormer: |
1 kW |
Mast: |
6m, 20ft, handmatig tillen |
Banden: |
R14 |
Kleur: |
Wit, rood, zwart |
Gewicht: |
ongeveer 900 kg |

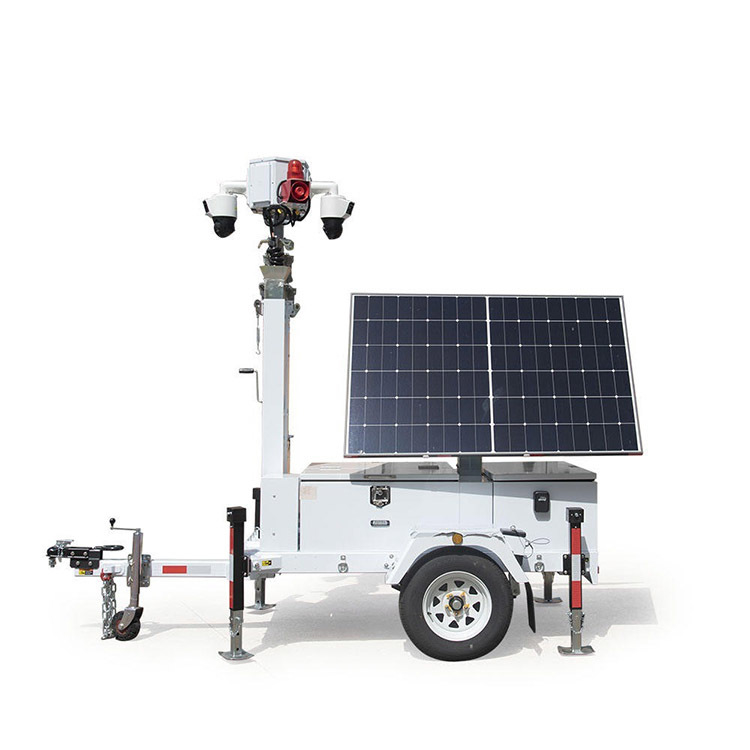

Solar CCTV Trailer With Foldable Solar Panels For Construction Sites Surveillance
1. The foldable solar panel design can be manually adjusted to enable the solar panel to receive the maximum amount of sunlight.
2. The tow hook and brake lights fully comply with American standards.
3. A 6-meter mast can lift the camera to its maximum height, providing a wider monitoring range.
4. The camera monitoring system will be provided by the customers.
Applications:
a. Temporary parking lot.
b. Remote area with power shortages.
c. Construction sites, mining sites, desert.
Specification:
Solar panel |
2*450W |
Solar angle adjustment device |
180º rotatable, 90º tiltable, manual adjuestment |
Battery |
4*200Ah, DC12V, gel battery |
Solar controller |
60A MPPT |
Mast |
6m manual, external cable mast design |
Inverter |
1000W |
AC charger |
29V15A |
Cameras |
provided by customer |
Tire |
185/70 R14 |
Cable |
2*Cat6, 2*1.5mm² |
Top control box |
hexagon, 457*323*323mm |
Surface treatment |
cold galvanized steel plate, powder coated |
Weight |
about 900kg |
Size |
2250*1350*2150mm |
Details:
Pictures:
Customized color:
Customer's projects:
CE of the solar trailers:
ENWEI Facotory Show:
Shipping:
